- General Information
- Manufacturer
- MSI
- Manufacturer Website Address
- http://au.msi.com
- Brand Name
- MSI
- Product Series
- MAG
- Marketing Information

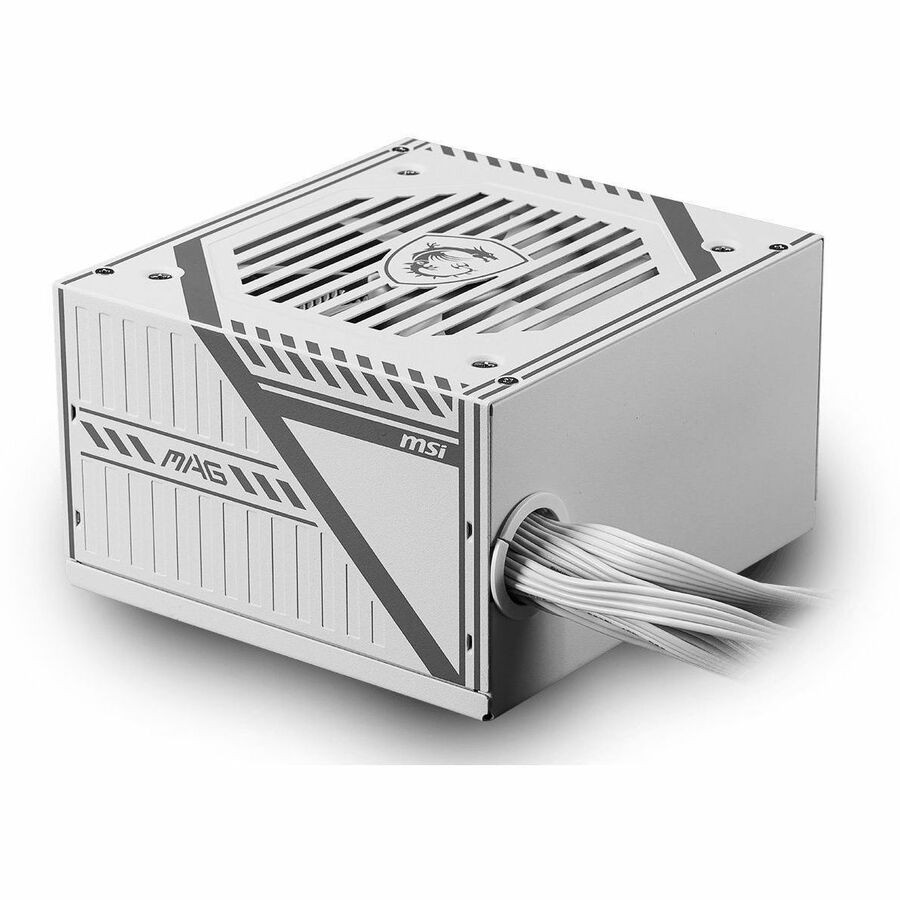

The MAG A650BNL's distinctive design patterns symbolize unity and strength. It unites all the components by reliably and stably supplying power to the entire system. With the MAG A650BNL, any system has the power it needs to survive all challenges.
80 PLUS BRONZE
The efficiency of your power supply directly influences your system's performance and power consumption. The 80 PLUS certification promises lower energy consumption and qualified efficiency level.
ACTIVE PFC DESIGN
The active PFC improves the efficiency of power output and provides a more stable environment for other PC components to operate in.
DC TO DC CIRCUIT DESIGN
Adopted DC to DC circuit design reduces the instability of output voltage, and adds stability to the supply of power.
PROTECTION DESIGN
Protection is designed to protect the unit mechanisms and provides comprehensive protection.
TEMPERATURE ADAPTATION
Engineered for reliability, your system operates safely at peak performance even in high-temperature conditions. This rugged power supply ensures sustained operation regardless of your environment.
120mm LOW NOISE FAN
The 120mm fan reduces the noise generated while maintaining excellent heat dissipation.
FLAT CABLE EQUIPMENT
The MAG A650BNL's cables are flat and in black. The flat cables make cable management easier and less of headache! Thanks to the flat cables, the entire system can be more organized.
- Product Type
- Power Supply
- Technical Information
- Efficiency
- 85%
- Power Factor Correction (PFC)
- Active
- Number of Fans
- 1
- Fan Bearing Type
- Hydro Bearing
- Fan Diameter
- 120 mm
- Protection Type
- Over Current
- Over Voltage
- Over Power
- Short Circuit
- Modular
- No
- Features
- Low Noise
- On/Off Switch
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 110 V AC - 240 V AC
- Output Power
- 650 W
- Input Frequency
- 50~60Hz
- Interfaces/Ports
- Number of SATA Power Connectors
- 5
- Number of (6+2 pin) PCI Express Power Connectors
- 2
- Number of (4+4 pin) CPU Power Connectors
- 2
- Number of 4-pin Molex Power Connectors
- 2
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Form Factor
- Internal
- Height
- 86 mm
- Width
- 140 mm
- Depth
- 150 mm
- Weight (Approximate)
- 1.97 kg
- Miscellaneous
- Energy Efficiency Certification
- 80 Plus Bronze
